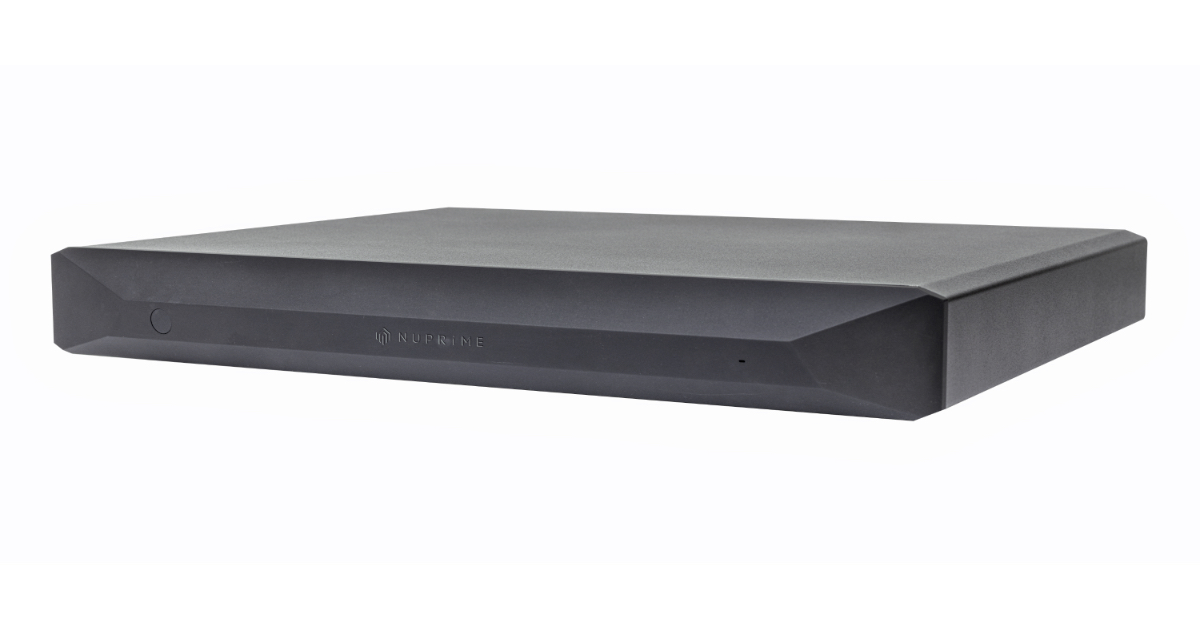

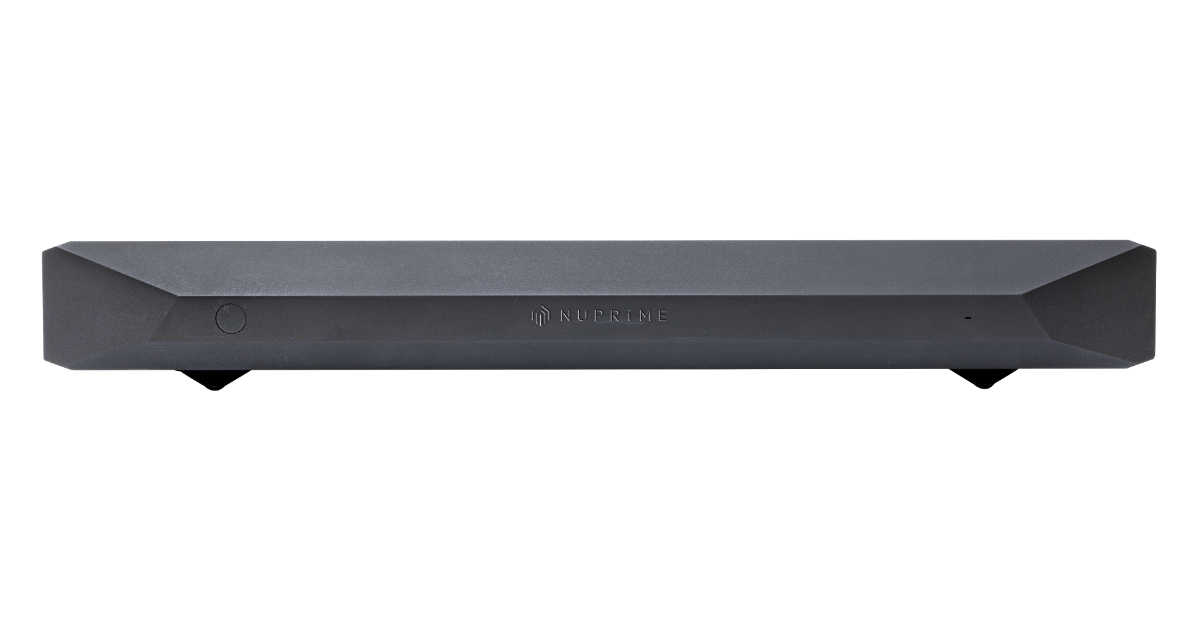

Evolution Stream

Supported Formats

USB Audio Output

• PCM: Up to 768KHz 32-Bit
• DSD Playback: Up to DSD512
• Roon DSP Transcoding: Up to DSD256

Streaming

• Roon Core, Roon Bridge, Spotify Connect, Tidal Connect, Qobuz Connect, DLNA, Signalyst
• Support all Hi-Res formats from Tidal and Qobuz

Designed for Uncompromized Audio Performance

The Evolution Stream Server is the perfect choice for music enthusiasts, offering seamless access to your digital music library whenever you desire.

1. Effortless Control & Seamless Performance - Install and run multiple applications effortlessly for an uninterrupted experience. Manage your music server with ease using the VitOS Manager mobile app.

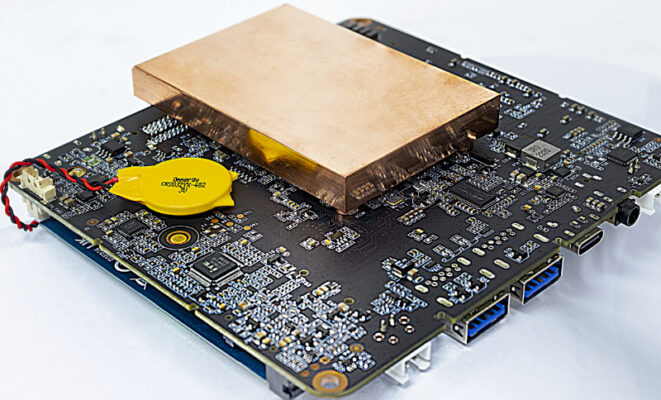

2. Precision Audio: Equipped with dual dedicated TCXOs (Temperature Compensated Crystal Oscillators), one for each Ethernet port, this system prevents clock signal interference, ensuring highly accurate timing. The 10MHz TCXO minimizes network latency and jitter, providing flawless audio playback.



3. Interference-Free Listening: EMI noise-filtering technology effectively eliminates electrical interference, ensuring a pure listening experience.
4. Optimized Storage: Equipped with a high-performance 250GB SSD optimized for VitOS and application storage, the all-flash drive delivers low latency and ample capacity. Performance is further enhanced by an EMI absorber and a dedicated power regulation circuit, isolating power noise for superior audio playback quality. We advise against expanding the internal storage, as using an off-the-shelf SSD may degrade performance. For users with large local music libraries, external storage is recommended.
5. Powerful Processing: The 4-core CPU enables seamless Roon Core DSP transcoding, handling PCM to DSD256 effortlessly.



6. DDR4 RAM: The system features low-power 32GB DDR4 memory modules, ensuring smooth performance.

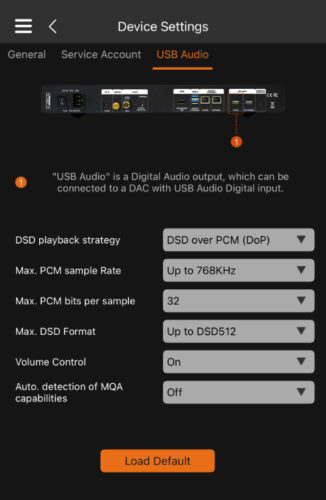

7. High-Resolution Audio: Supports USB audio output with resolutions up to DSD512 and PCM 768KHz, delivering exceptional audio quality.
8. Enhanced USB Audio Output: Utilizes advanced high-frequency filters to reduce noise and enhance USB audio output quality with clean 5V power.
9. Player Port with Evolution Stream Server's subnet for highest possible performance between itself and a Player such as Stream-9 or DLNA clients.
10. External Storage Ready: High current USB ports for external storage.

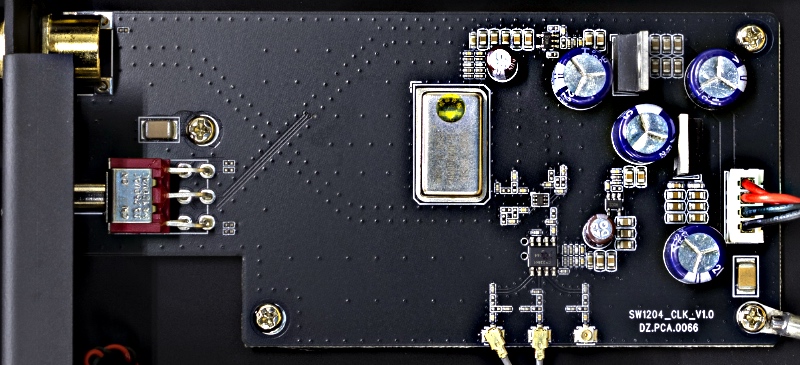

11. Clock Upgrade Ready: The system supports an external 10MHz Word Clock input, with a gold-plated 10MHz port for superior accuracy.
12. Clock Source Flexibility: Includes an internal/external clock selector, allowing seamless switching between clock sources for optimal configuration.

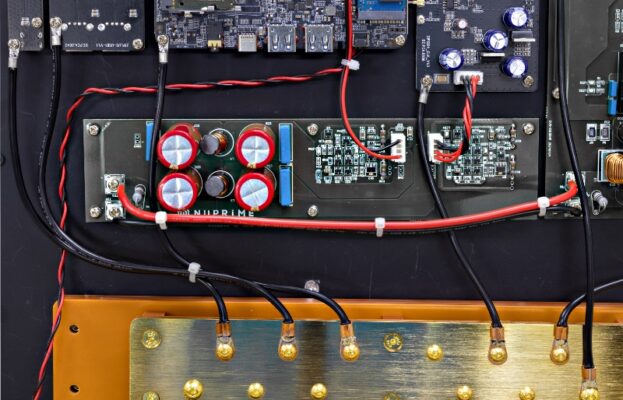

13. Power Input Noise Filtering: Incorporates a high-frequency noise filter in the power input module, ensuring accurate signal transmission with minimal noise and perfect phase synchronization.

14. Dual Gigabit Ethernet Ports: Includes two Gigabit Ethernet ports: one for network connectivity and the other optimized for direct connection to an audio player.

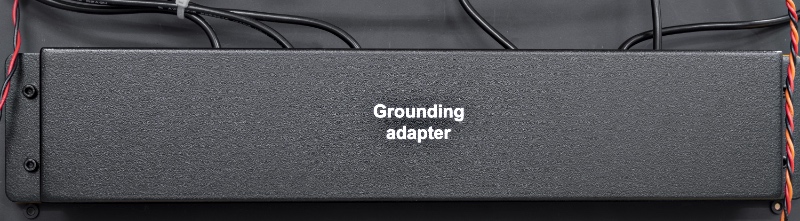

15. Grounding terminal for dedicated ground connection to reduce power noise. Internal grounding adapter to reduce ground noise.

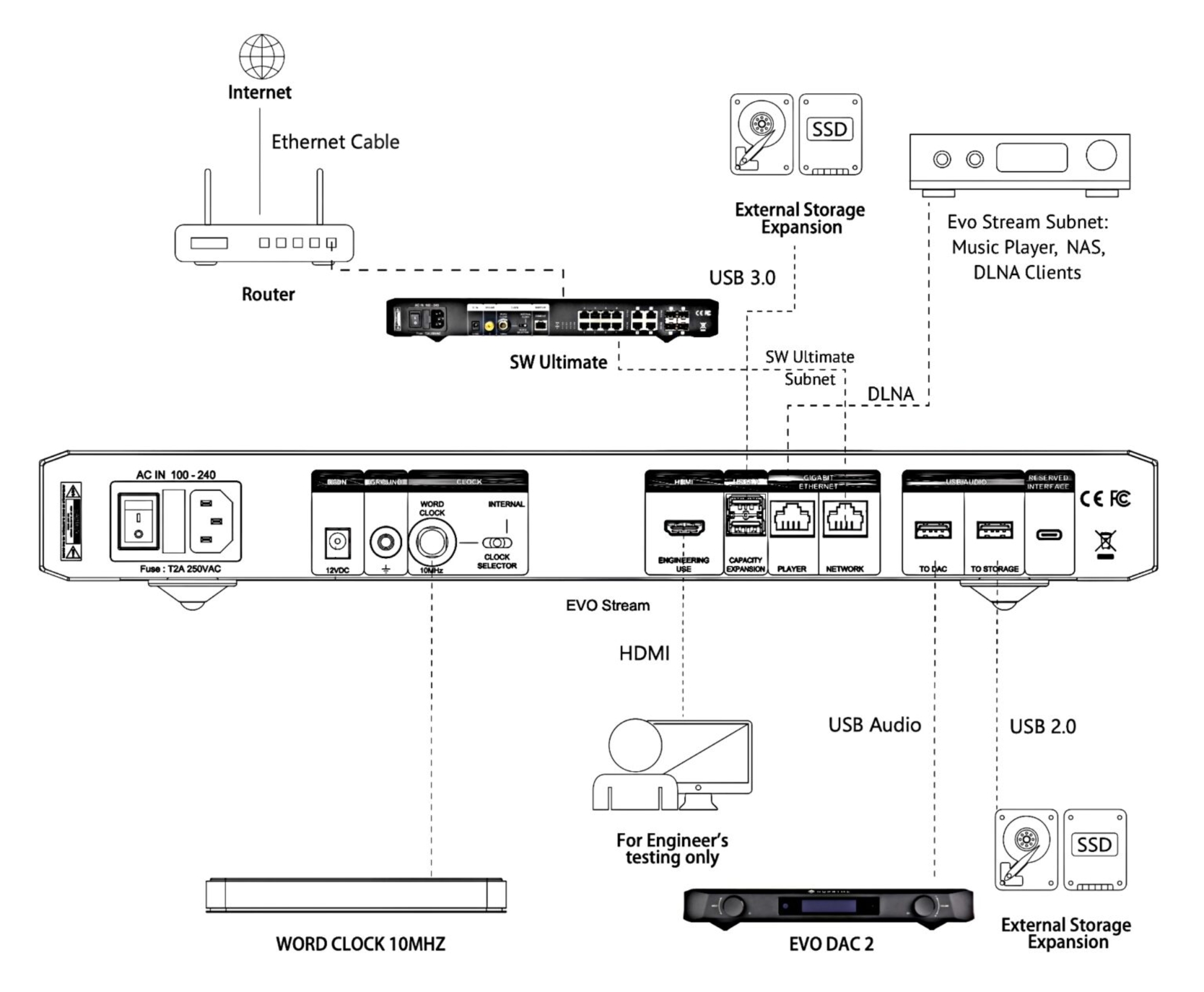

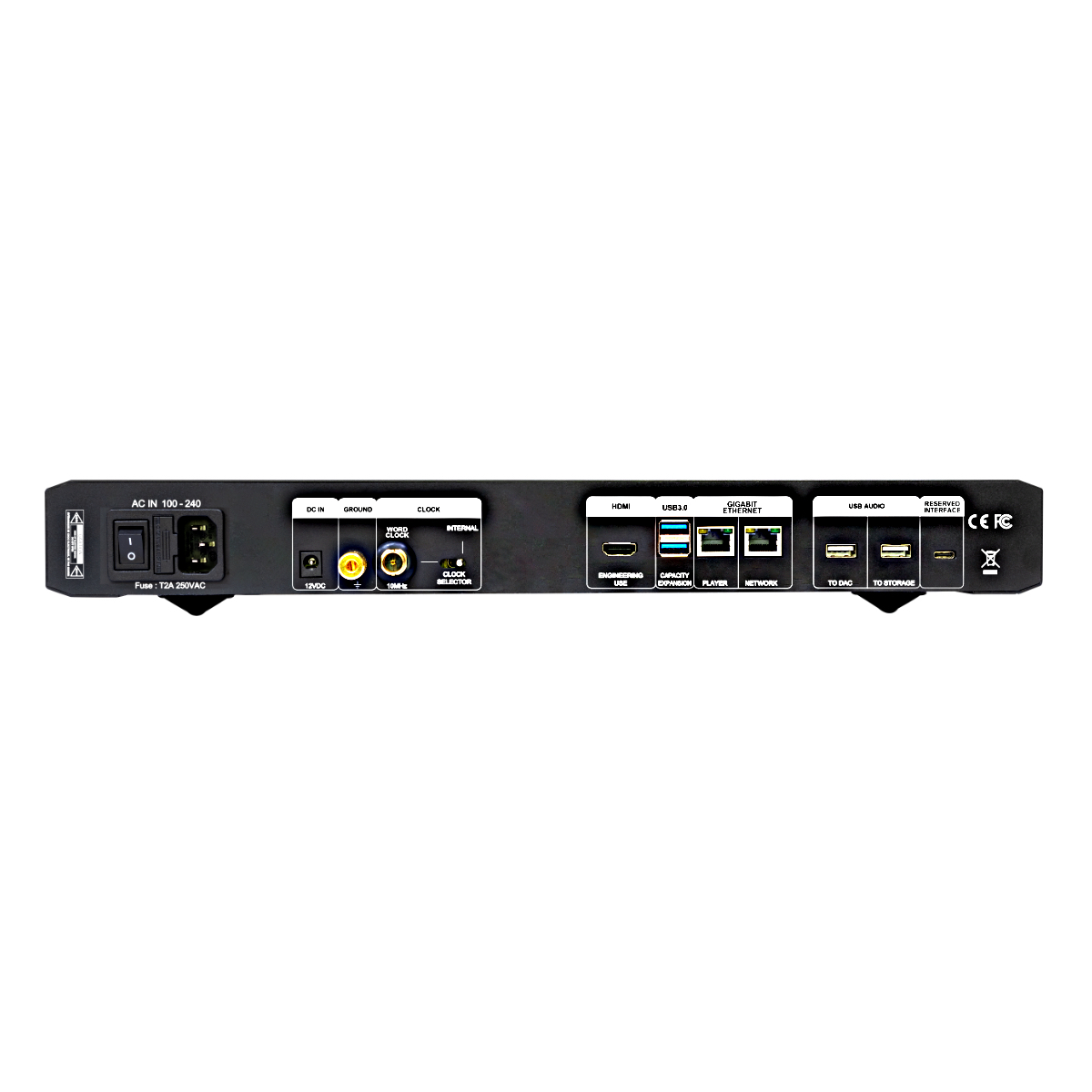

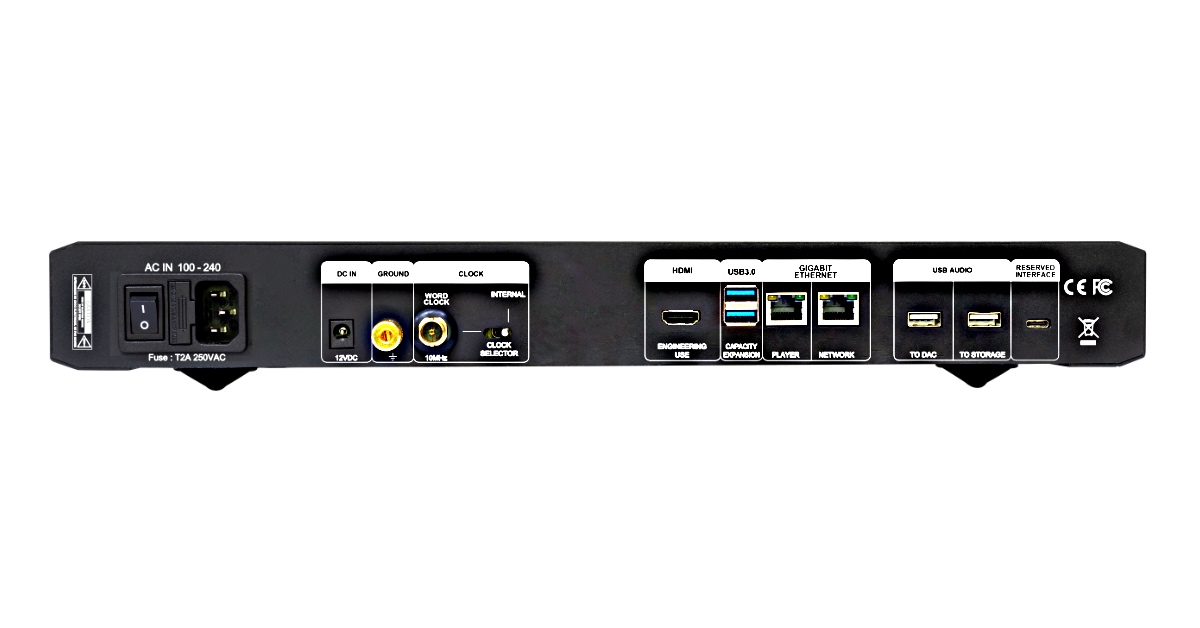

Back Panel:

• (3) Player Port; (4) Network Port; (5)&(6) Capacity Expansion Port USB 3.1; (7) Clock Input;
• (8) Clock Selector; (9) DC Input; (10) Reserved Type-C Interface; (11) USB Audio Output Port;
• (12) Capacity Expansion Port USB 2.0; (13) Maintenance Port

Specifications

• CPU: Intel Quad-core CPU J6413
• RAM: 32GB
• Storage:
  • SATA SSD: 250GB / 4TB
  • NVMe SSD: Up to 4TB
• Word Clock: Highly Accurate TCXO Clock
• External Clock Input Port: 10MHz x 1 (square wave)
• Ethernet: 1GbE x 2
• Expansion USB Port:
  • USB 3.1 x 2
  • USB 2.0 x 1
• USB Audio Output: Second Generation USB Audio Output with Improved Noise Reduction Enhancement
• Type-C: 1
• Multiple Audio Players Output Simultaneously: Up to 10
• PCM: Up to 768KHz 32-Bit
• DSD Playback: Up to DSD512
• Roon DSP Transcoding: Up to DSD256
• Color: Black or Silver
• Product Dimension:  61.5 x 430 x 369 mm (H x W x D)
• Package Dimension: 160 x 450 x 560 mm (H x W x D)
• Product Weight: 5.2kg
• Package Weight: 9.8kg
• Fuse: Fast Blow 2A

Latest version:

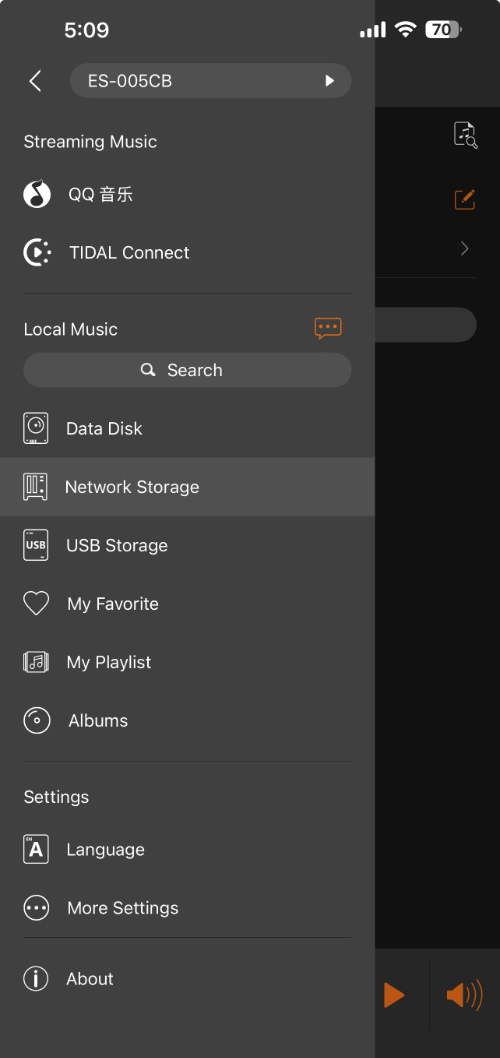

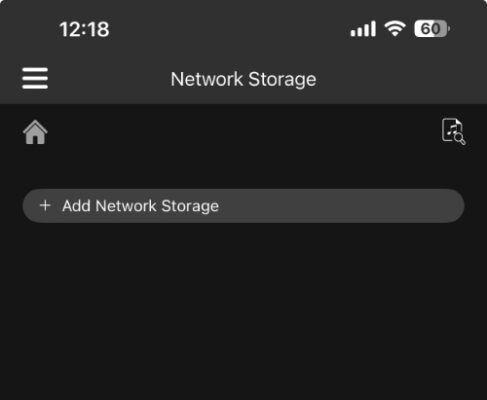

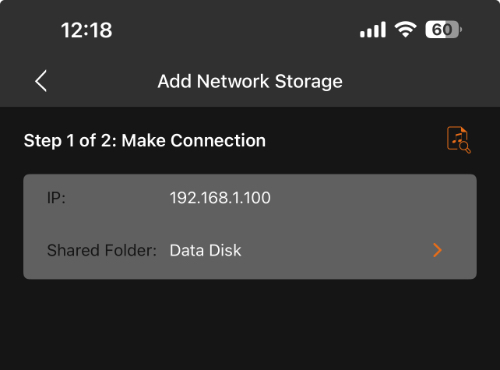

• This version added AirPlay and shared access to files on a network. Omnia devices will be able to access VitOS devices to stream music from local libraries.

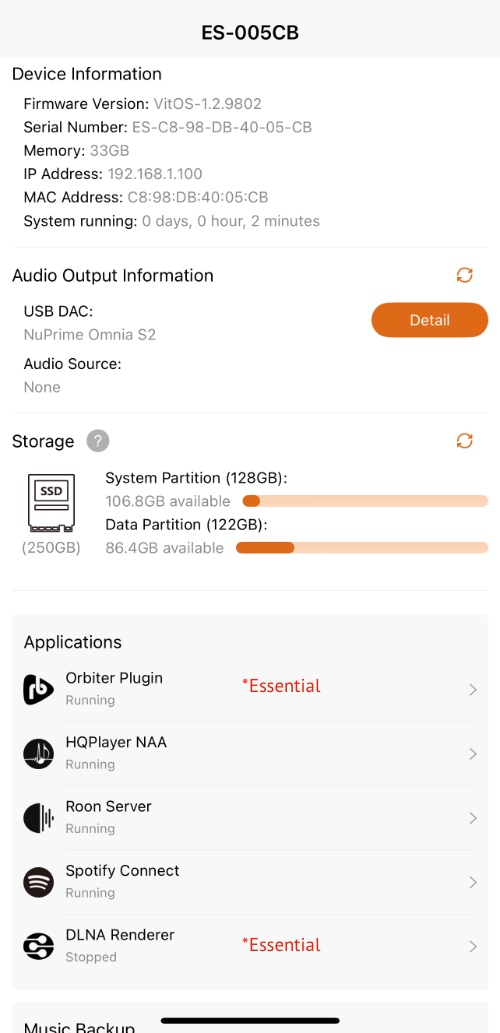

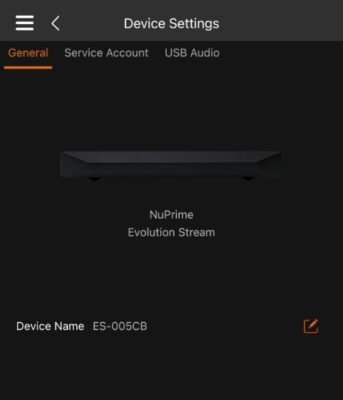

To get started, connect VitOS Manager to Evolution Stream, then install the Orbiter Plugin and DLNA Renderer as the essential components.

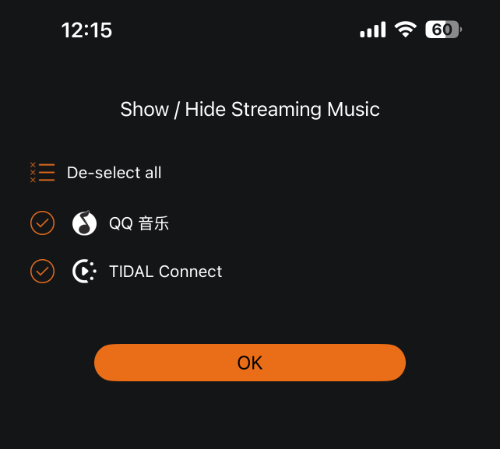

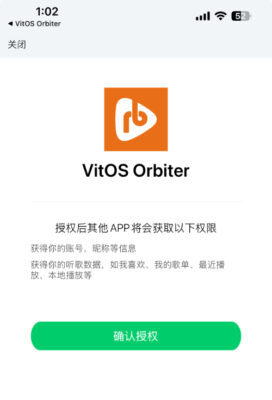

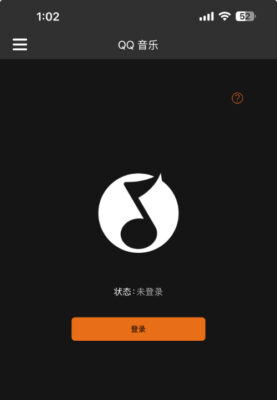

Spotify Connect currently exists within VitOS Manager.  Streaming services supported under VitOS Orbiter are Tidal Connect and QQ Music. Qobuz is currently accessible through Roon and may become available directly in VitOS when Qobuz Connect launches in 2025. For the latest updates and potential additions of other streaming services, please visit https://us-store.nuprimeaudio.com/vitos-quick-start-guide/

Manuals

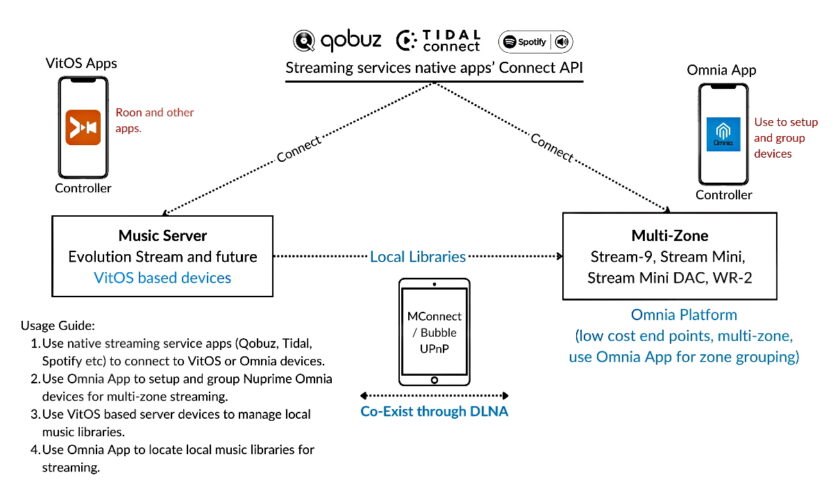

Usage Guide:

1. Use native streaming service apps (Qobuz, Tidal, Spotify etc) to connect to VitOS or Omnia devices.


2. Use Omnia App to setup and group Nuprime Omnia devices for multi-zone streaming.


3. Use VitOS based server devices to manage local music libraries.


4. Use Omnia App to locate local music libraries for streaming.
