CDT-9
$ 1,249.00

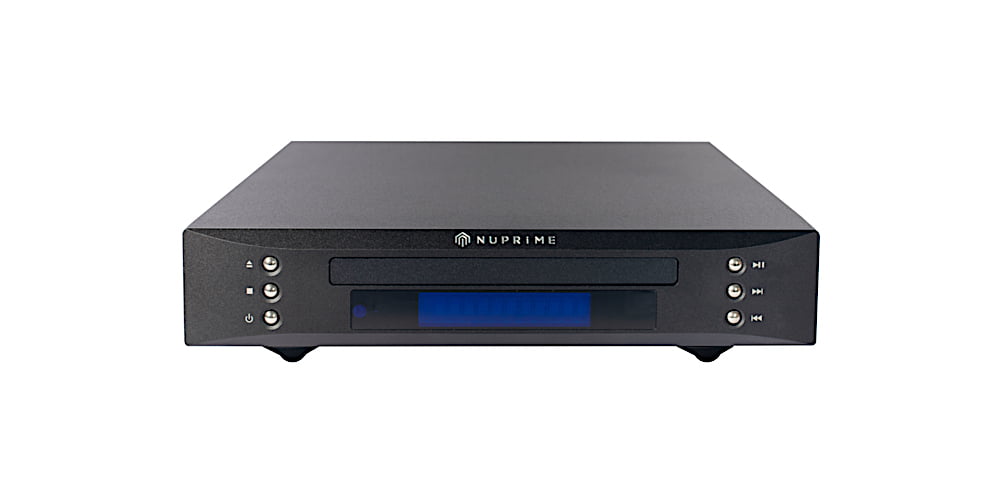

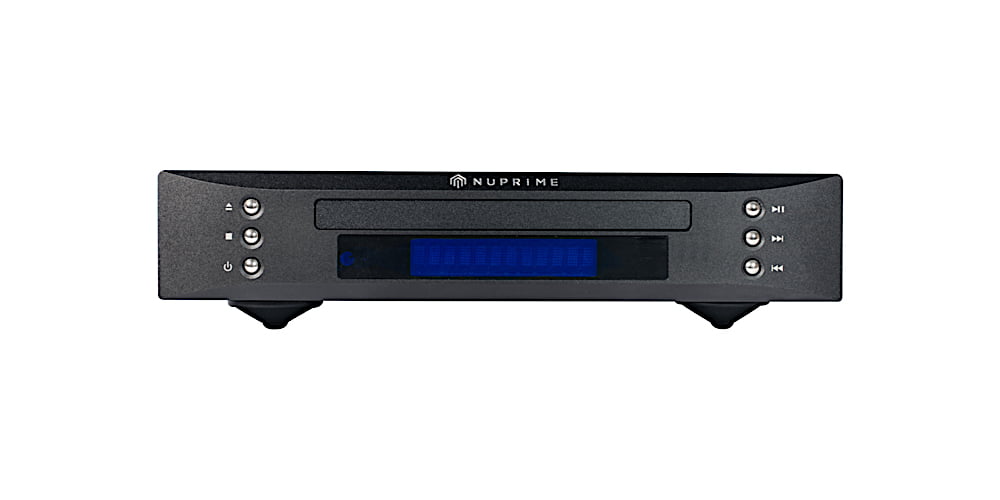

The NuPrime CDT-9 is a highly accurate professional music CD transport with powerful DSP-based decoder that provides all Red Book error-correction capabilities with master-clock control of the entire decoding system, thus lowering jitter significantly. The transport’s single speed minimizes vibration and unbalanced discs. A selectable sampling rate converter (SRC) samples the CD format to a higher sampling rate (up to PCM 24-bit/768kHz and DSD256) with ultra-low jitter and distortion.
The CDT-9 Transport comes with features that enable it to out perform all CD transports in its price range.
Highly Accurate CD Playback

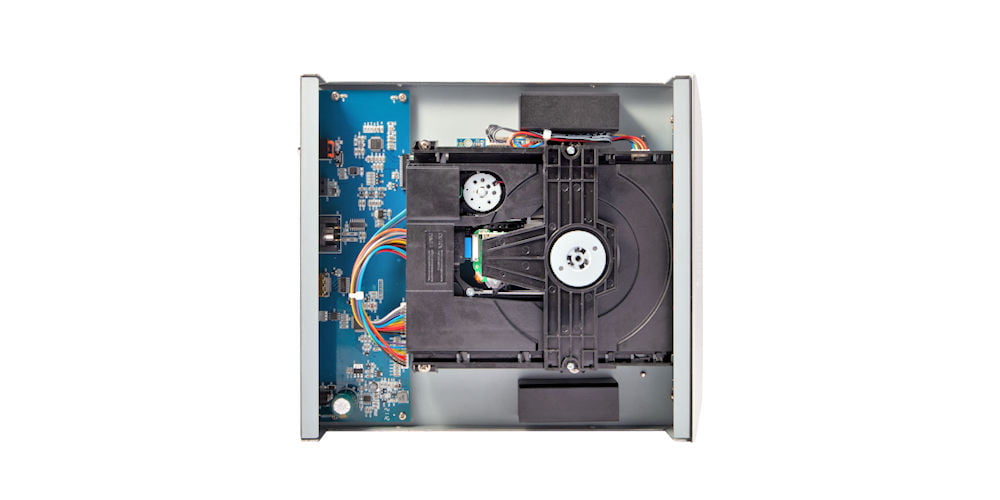

- A powerful ARM chip LPC2103F CD reads, writes and controls error correction
- Philips SAA7824HL high-end laser reads/writes head control and decodes chips for CD transport.
- Algorithm reduces digital interference resulting in extremely low jitter
- Coaxial output with a dedicated isolation transformer
- Low jitter I2S output for professional use
Sampling Rate Converter
- The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to 768kHz or DoP256
- The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion
Power and Mechanical
- Custom R-type professional transformer with shielding
- Low power consumption in Standby Mode
- NuPrime vibration-free isolation feet
- High quality aluminium remote control

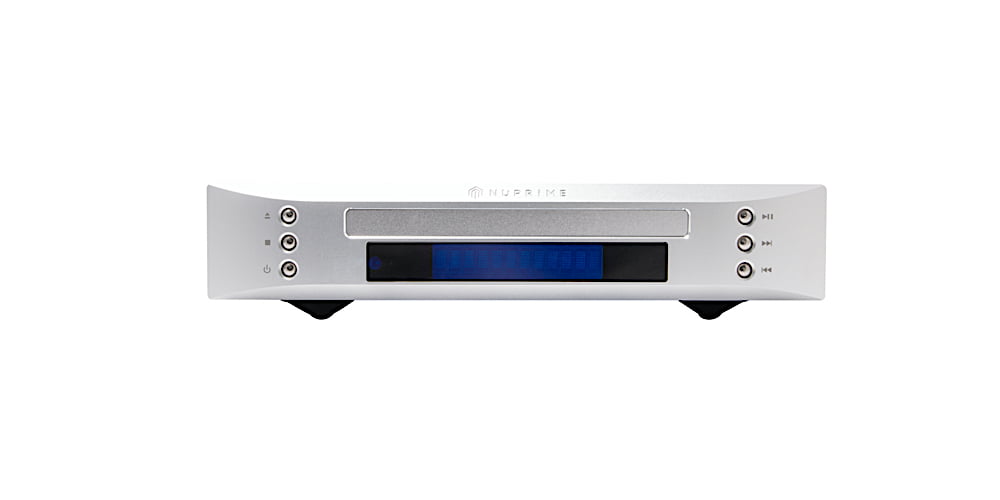

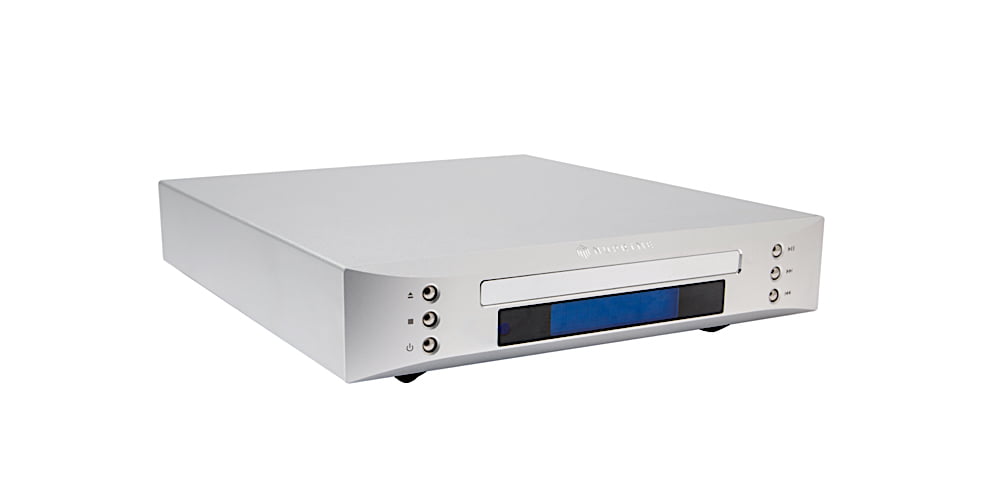

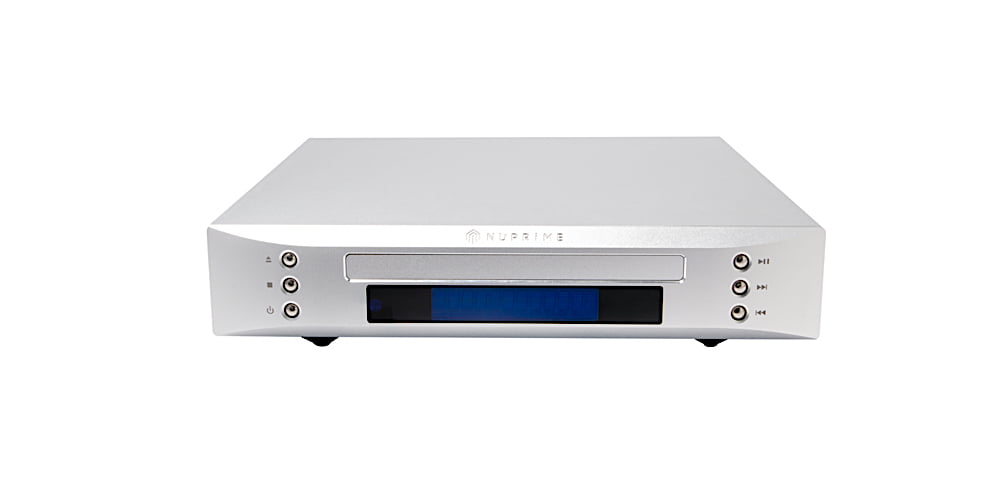

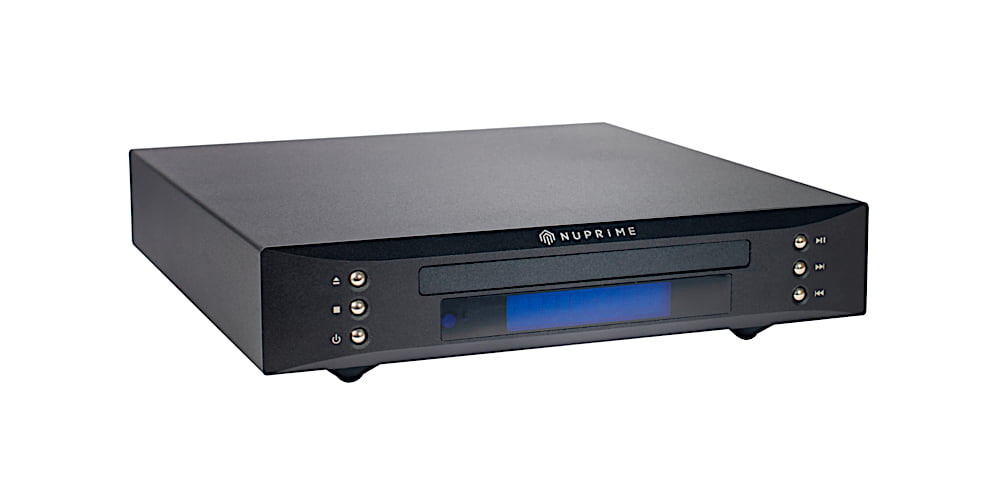

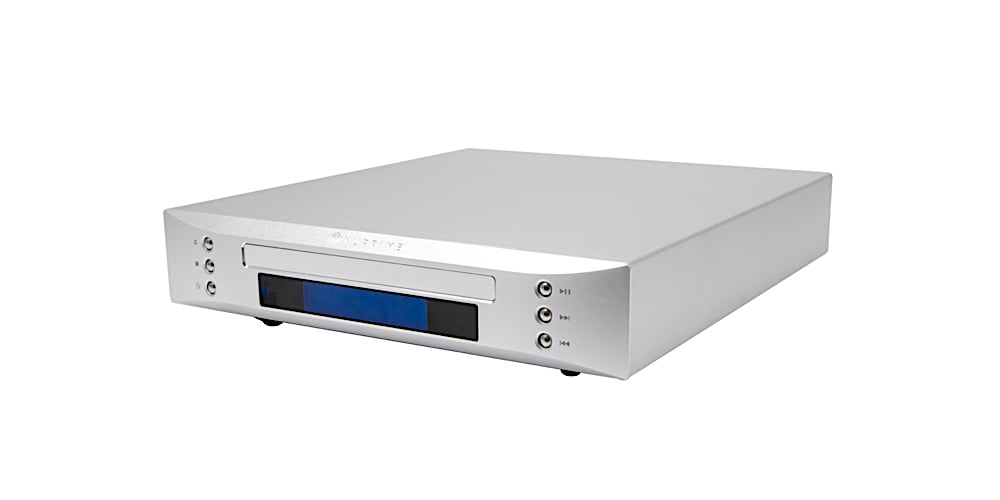

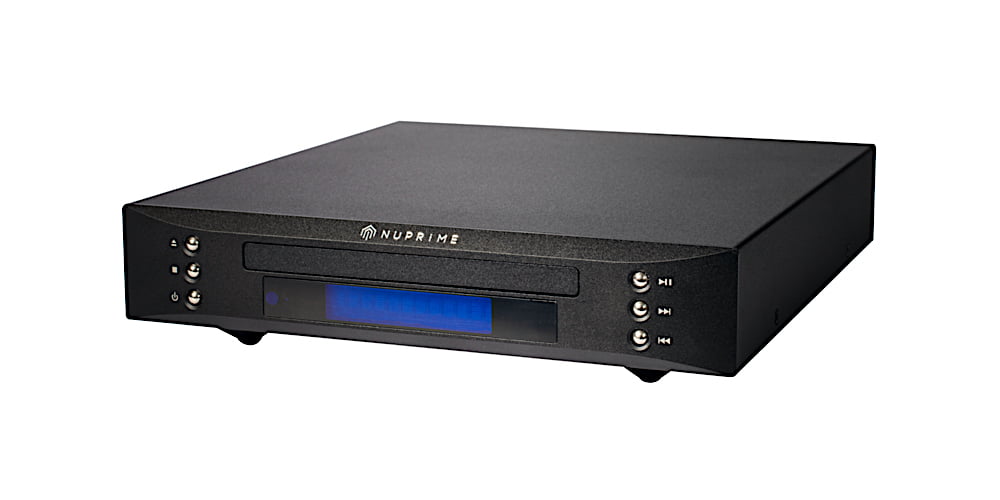

- Available in black or silver anodized aluminum finish
- External AC adapter included
- Bundled with LPS-212 for $1495 (recommended option)

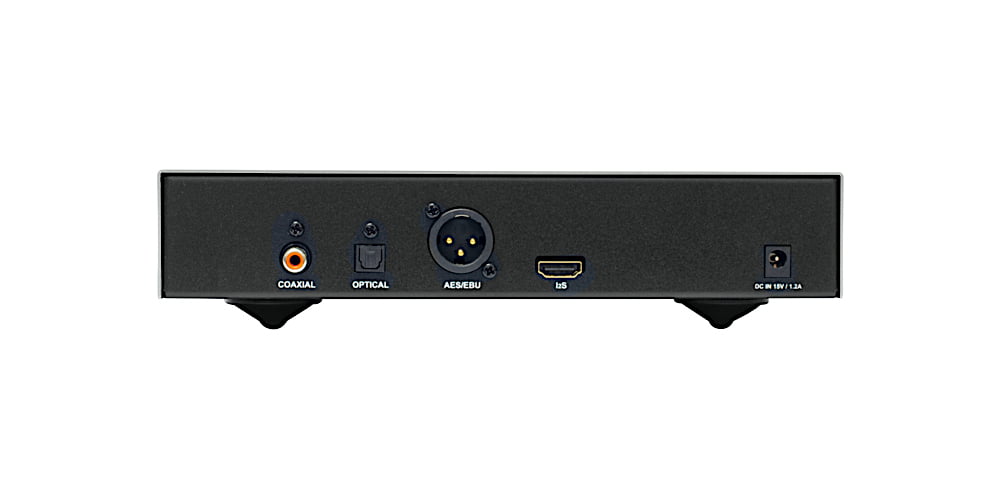

Outputs:
- Optical Output (up to 24 bits / 192 kHz) (DoP64)
- Coaxial Output (up to 24 bits / 768KHz) (DoP256)
- HDMI I2S* Output (up to 24 bits / 768KHz) (DoP256)
- AES / EBU Output (up to 24 bits / 768KHz) (DoP256)
*Note that the I2S output is for connecting with other NuPrime products and may not work with other devices.
- Optical Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
192KHz, DoP64 - Coaxial Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256 - HDMI I2S Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256 - AES / EBU Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256 - Bit Resolution: 24-bits
- AC Fuse: Slow-blow, 1A, 250VA
- Worldwide AC voltage: 100VAC~240VAC
- Product Dimension: 55 x 235 x 281 mm (H x W x D)
- Package Dimension: 80 x 390 x 360 mm (H x W x D)
- Product Weight: 4kg
- Package Weight: 5kg
- Warranty: 1 year.
*CDT-9 DC power input: 12 to 15V
*Note that the I2S output is for connecting with other NuPrime products and may not work with other devices.
NEC Key
CUSTOM CODE : 01FE
KEY CODE
POWER : 0EF1
DIS : 07F8
RPT : 0CF3
OPEN : 05FA
STOP : 06F9
PREV : 04FB
PLAY : 0FF0
NEXT : 0DF2
SRC SELECT PREV : 1CE3
SRC : 02FD
SRC SELECT NEXT : 01FE
