Stream-9

Feature Highlights

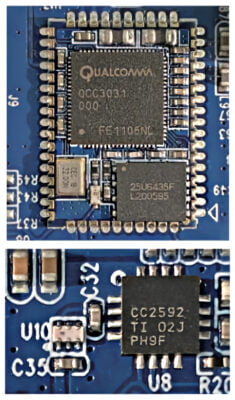

• Wi-Fi 24-bit/192kHz and Bluetooth 5.0 aptX HD streaming. Mobile devices can stream Bluetooth music to Stream-9, but it can not stream to Bluetooth earphones.
• A selectable sampling rate converter (SRC) samples the streaming source or digital input music to a higher sampling rate (up to PCM 24-bit/768kHz and DSD256) with ultra-low jitter and distortion
• Supports all major online streaming services (Amazon Music, iHeartRadio, Qobuz, QQ Music, Spotify, TIDAL, TuneIn), AirPlay 2, and network DLNA.

The free iOS and Android app allow you to easily control your smart music system and select your source music and group destination speakers (including receiving streamers).

If you are using Qobuz, please download firmware 4.6.520554 (see APP & FIRMWARE tab on this product page)

Streaming Services and Hi-Res Streaming for NuPrime Omnia Devices

Supported online streaming services: Qobuz, QQ Music, Spotify, TIDAL, Apple Music.

Qobuz and Tidal

• Stream music from Qobuz and TIDAL using the MConnect Player app on iOS or the BubbleUPnP app on Android. Hi-Res audio streaming is supported via the DLNA protocol.
• Qobuz Connect and Tidal Connect not supported.

Spotify

• From Spotify player, stream to NuPrime device through Spotify Connect.
• Spotify Lossless is not supported.

QQ Music (QQ音乐)

• Refer to QQ music setup guide

Technical Highlights

NuPrime proprietary Sampling Rate Converter (SRC) chip, low noise linear power supply and power circuit, plus other audiophile-grade components enable the STREAM-9 to achieve world class performance above its peers.

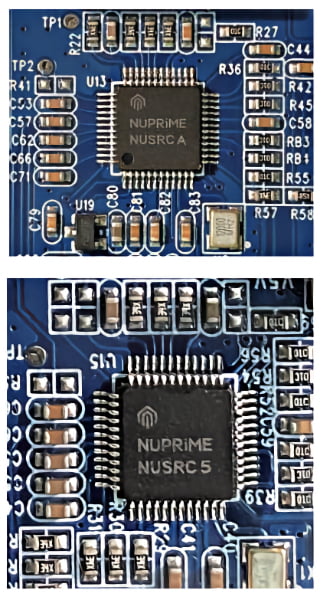

Ultra Hi-Res Sampling Rate Converter
	The sampling rate of any digital inputs, including streaming, can be converted up or down between PCM and DSD, from 44.1kHz to 768 kHz or DSD64 to DSD255 The conversion is achieved by up-sampling to megahertz before down converting to the targeted sampling rate with ultra-low jitter and distortion.

Amlogic A113X
	64-bit quad-core Arm Cortex-A53 processor for high resolution wireless streaming

SPECIFICATIONS

Digital I/O & Wireless

• Bit Depths: 16-32 bit
• Streaming Audio Processing Engine: up to 192KHz / 24-bit
• Optical S/PDIF Input: PCM up to 192KHz and supporting DoP format DSD64
• Coaxial S/PDIF Input: PCM up to 192KHz and supporting DoP format DSD64
• IIS/DSD HDMI Output: PCM up to 768KHz/32Bit and DSD up to DSD256
• AES/EBU Output: PCM up to 768KHz/32Bit and DSD up to DoP256
• Optical output: PCM up to 192KHz and supporting DoP format DSD64
• Coaxial output: PCM up to 192KHz and supporting DoP format DSD64
• Quickly guide WIFI connection settings via BLE
• Streaming Technologies: Bluetooth 5.0 (aptX HD), DLNA, AirPlay, AirPlay 2
• Network Connectivity: Gigabit Ethernet RJ45, 802.11 b/g/n Wi-Fi

Dimension and Weight

• Product Dimension:  55 x 235 x 281 mm (H x W x D)
• Package Dimension: 80 x 390 x 360 mm (H x W x D)
• Product Weight: 4kg
• Package Weight: 5kg

Power:

• AC 100-115V or  220-240V
• Fuse: T1A/250VAC

Warranty: 1 year.

Specifications and supported cloud services are subject to change without notice.

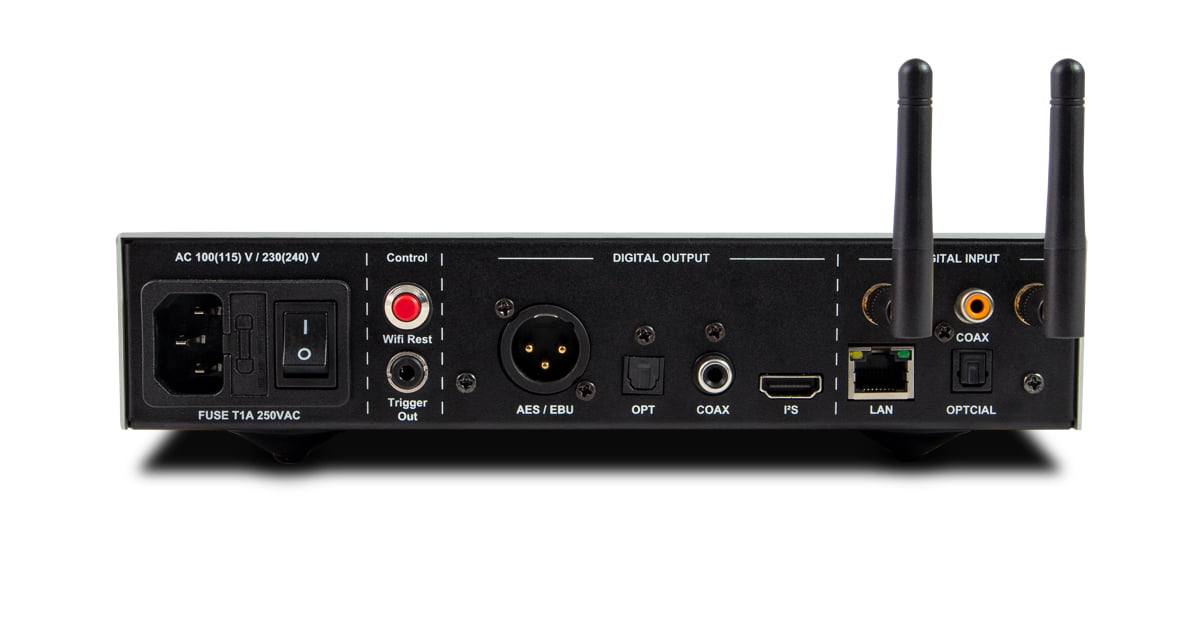

Rear Panel Illustration

1. Power Switch


2. Fuse


3. Power Socket


4. Factory Reset/Wi-Fi Reset Button


5. Trigger Out


6. AES/EBU Output


7. SPDIF Optical Output


8. Coaxial SPDIF Output


9. HDMI I2S Output


10. LAN


11. Optical Input


12. Coaxial Input


13. Antenna (Wi-Fi & Bluetooth)

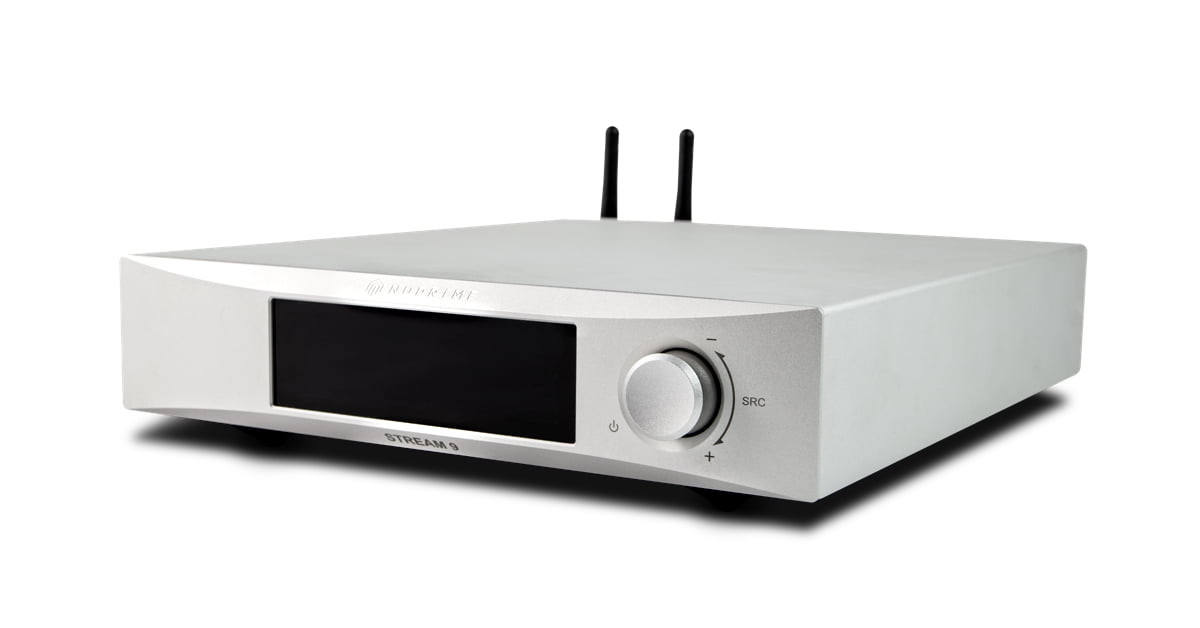

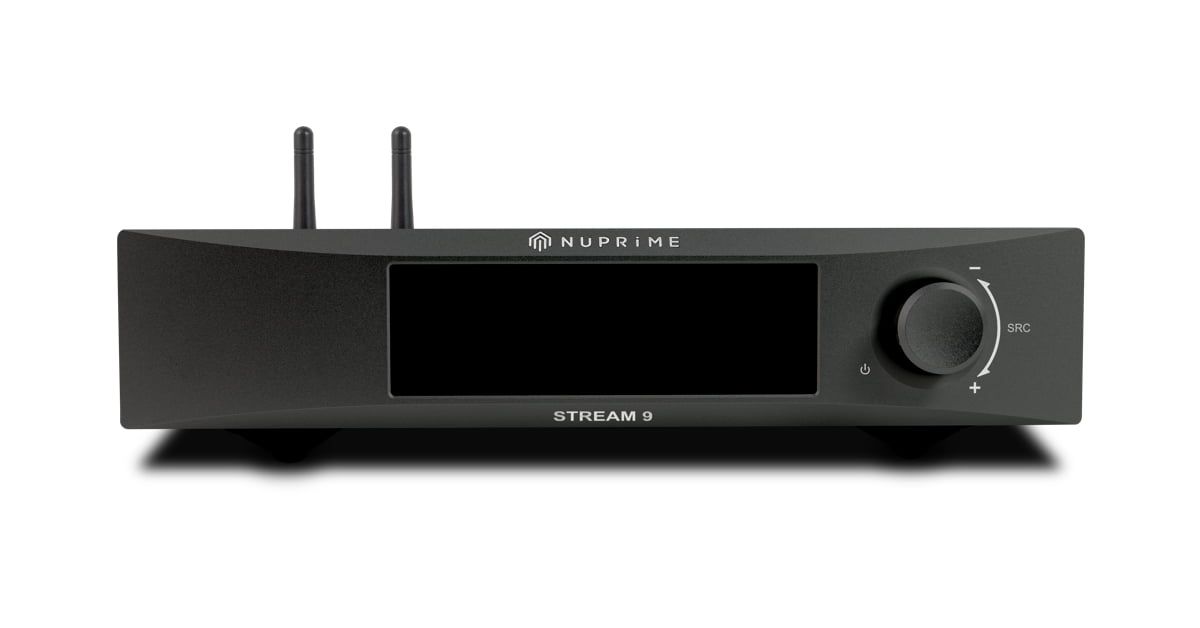

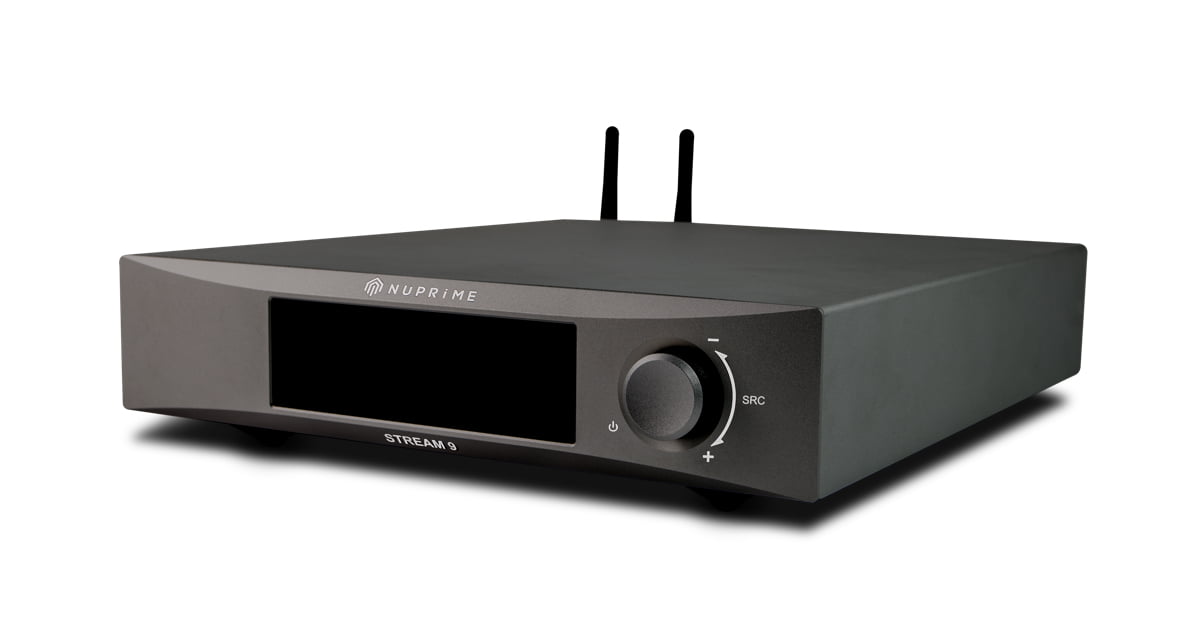

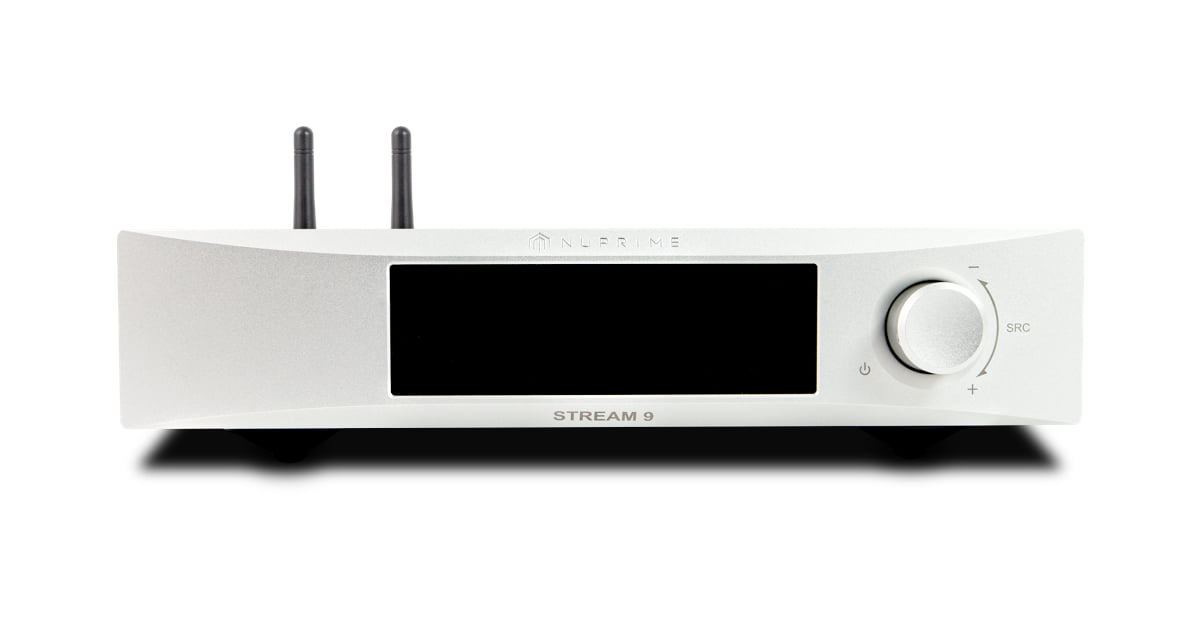

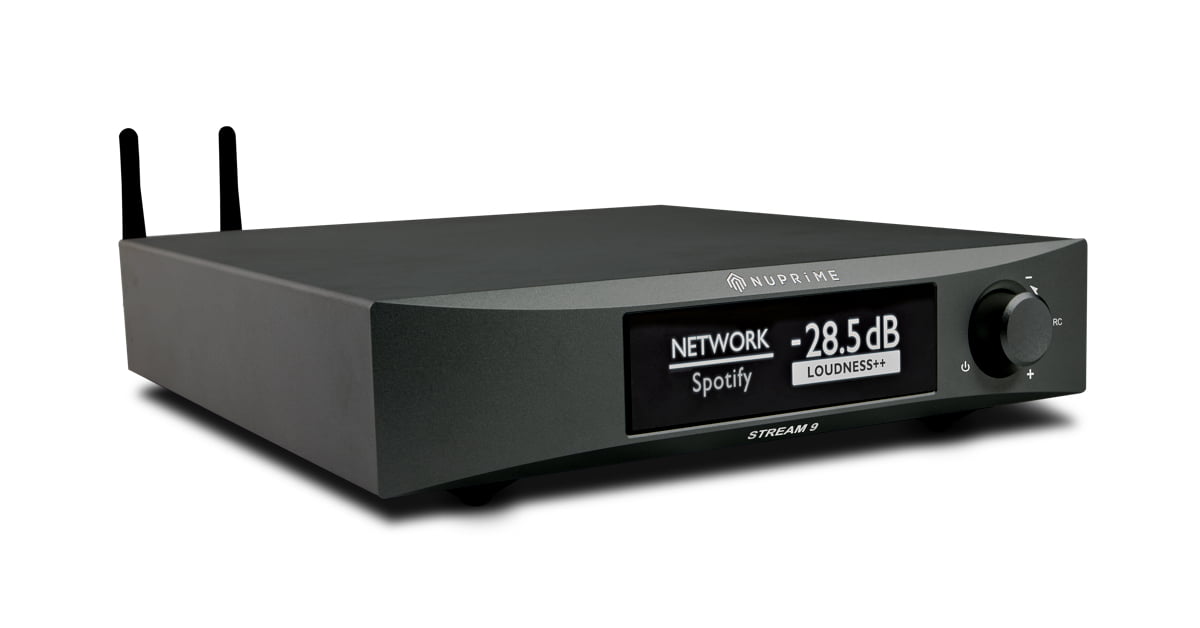

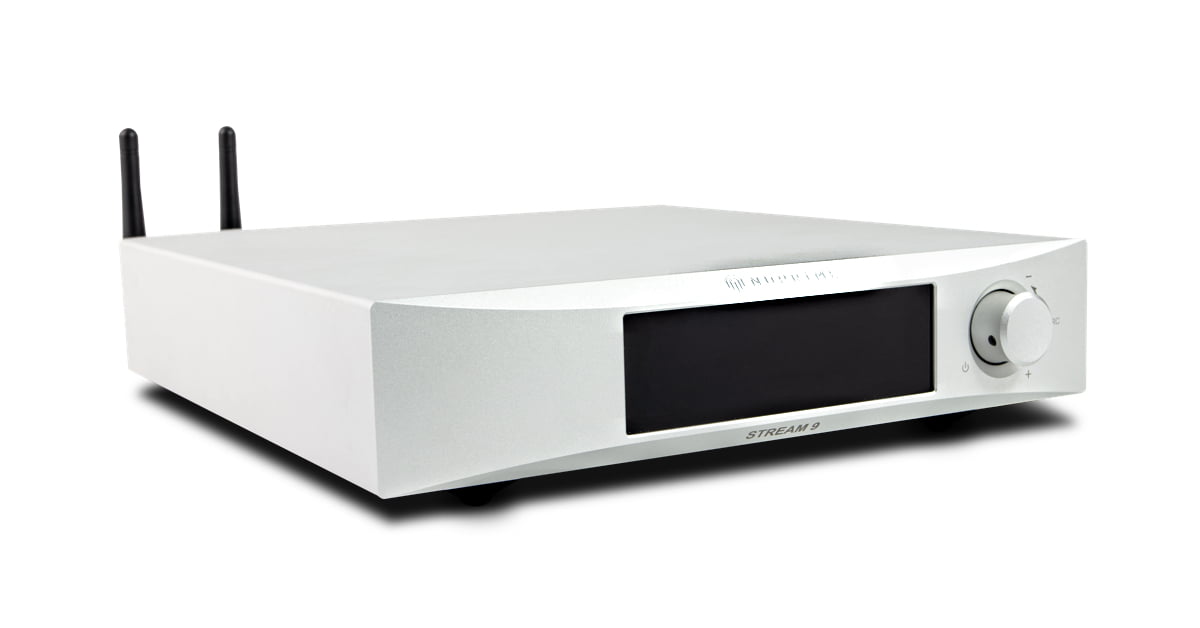

Front Panel Illustration

1. Dual-band antenna


2. Display


3. Function Control knob

Remote Control

1. Power ON/Standby button. To power off STREAM-9, use the AC switch.


2. Preset channels for favorite music services.


3. Source input selection


4. Sampling Rate Conversion


5. Multi-function control for music playback

Setting the Remote Control Preset Keys 1 to 9

Setting the Preset Channels

1. On the App, select any playlist that you want to set on the Remote Control keys 1 to 9.


2. Only the playlist that has a speaker icon on the top right corner can be programmed as a Preset. Select the speaker icon and a Present Content box will pop up.


3. Select any of the 1 to 9 and confirm that you want to link this playlist to the corresponding Remote Control Preset Key.

iOS

• Install the NuPrime Omnia Receiver app from the Apple App Store. Use it only for setting up your device for Wi-Fi connection and multi-zone grouping, not for streaming playback. Omnia Receiver app User Guide


• Use the MConnect app to stream from your favorite services or local NAS to the Omnia device.

Android

• Install 4Stream App from Google Play Store if you can't install Nuprime Omnia app. Set up your Omnia device for Wi-Fi connection and multi-zone grouping.


• Use the BubbleUPnP app to stream from your favorite services or local NAS to the Omnia device.

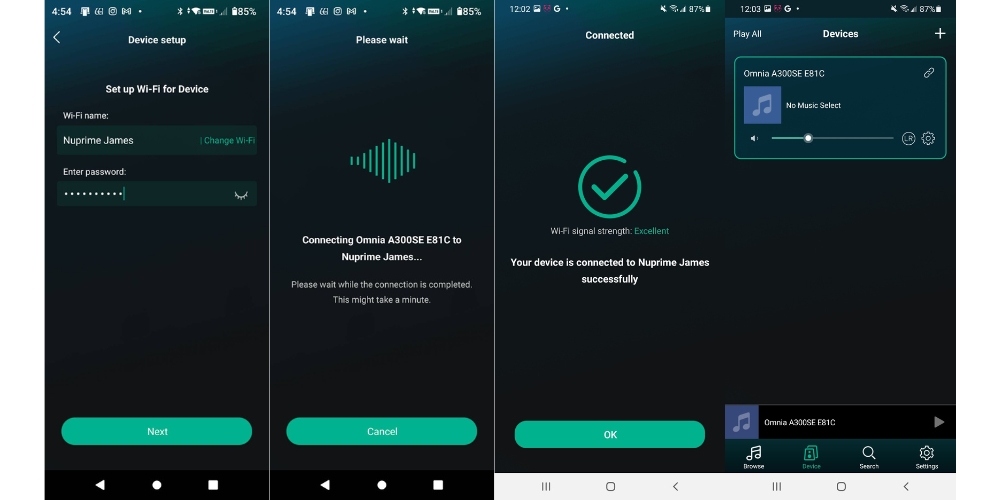

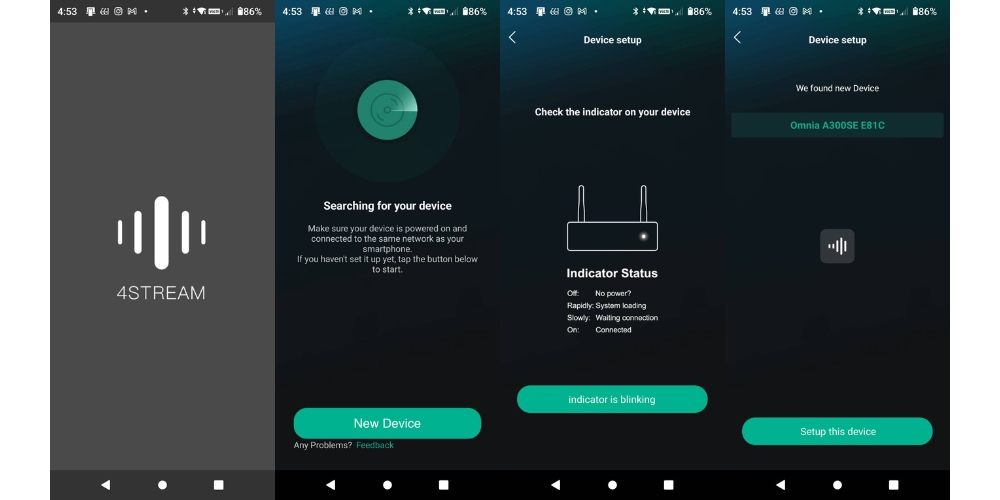

4Stream Guide (for device setup only)

Manual Update

1. When streaming Qobuz and switching between sampling rates, a short fraction of the beginning of the first switched track is missing.


2. When streaming Qobuz at 192kHz, there are clicks, pops and dropouts.

Instructions
