Price range: $ 699.00 through $ 799.00

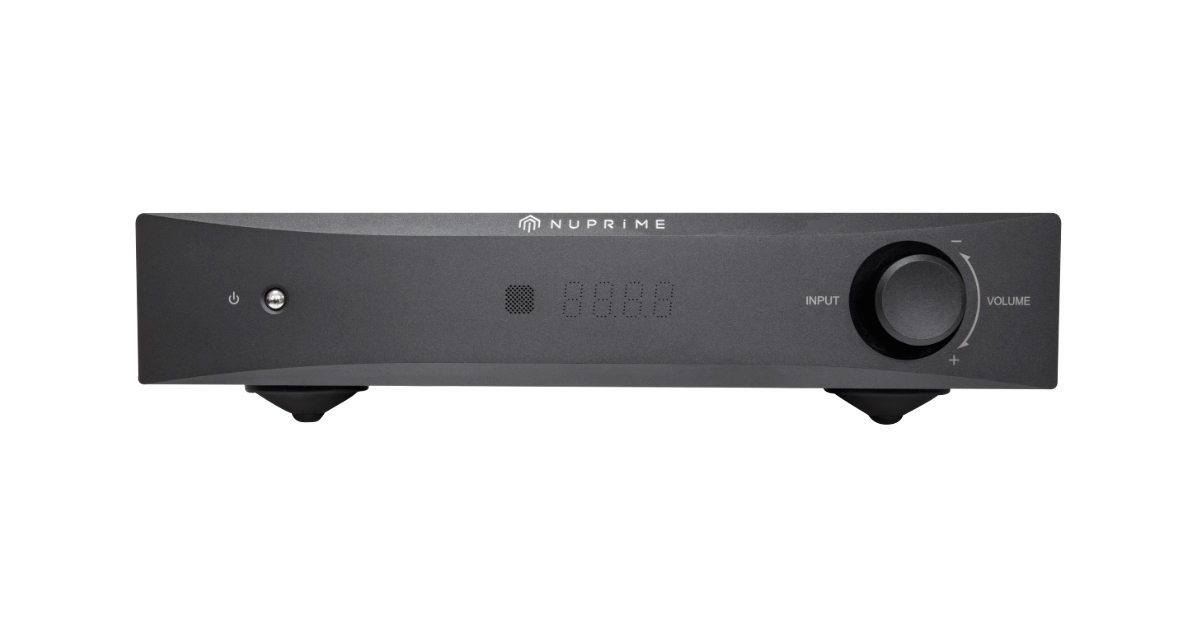

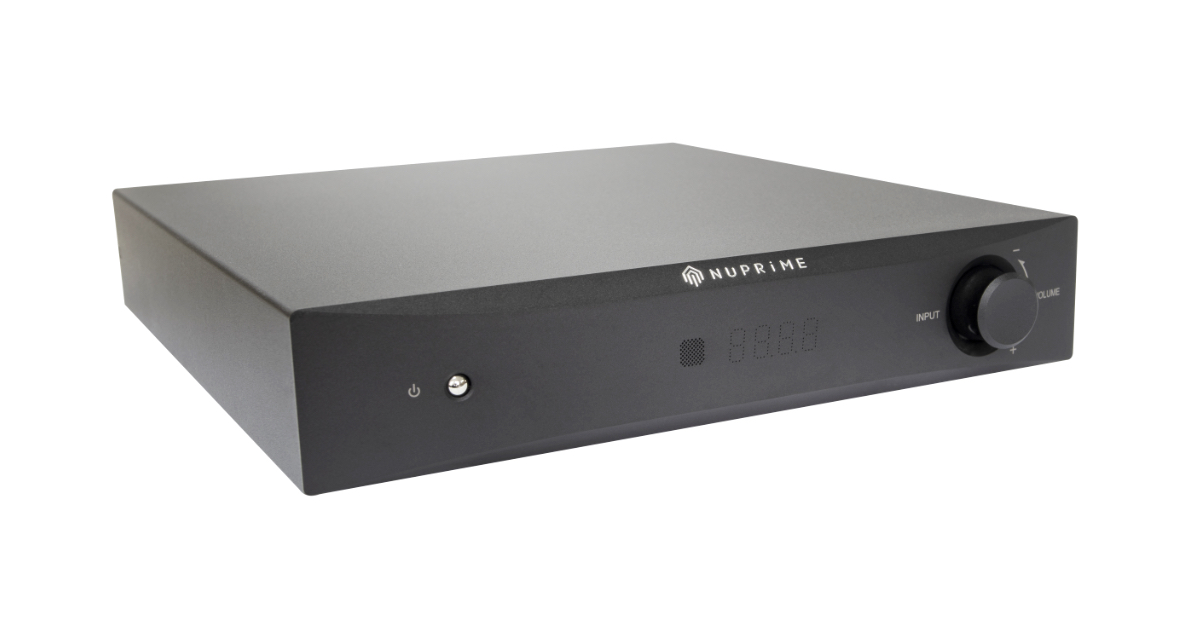

With eight digital (including 2 x IIS/DSD) inputs, RCA stereo output, and decoding capability of PCM 384K, DSD256, the NuPrime DAC-8 is an affordable high-end DAC designed for audiophiles.

SKU: NP-DAC-8 Category: Tag:

Main Features:

  • Extension port for Bluetooth receiver and WiFi audio streamer (optional).
  • Full microprocessor control with memory retention.
  • Supports DSD native playback by ASIO2.1 and DoP method.
  • Asynchronous transfer mode.
  • Volume adjustment in 99 precise 0.5dB increments
  • Individually adjustable volume on each input for precise level matching of sources
  • Exclusive driver software for Windows
  • Standard driver software for Mac

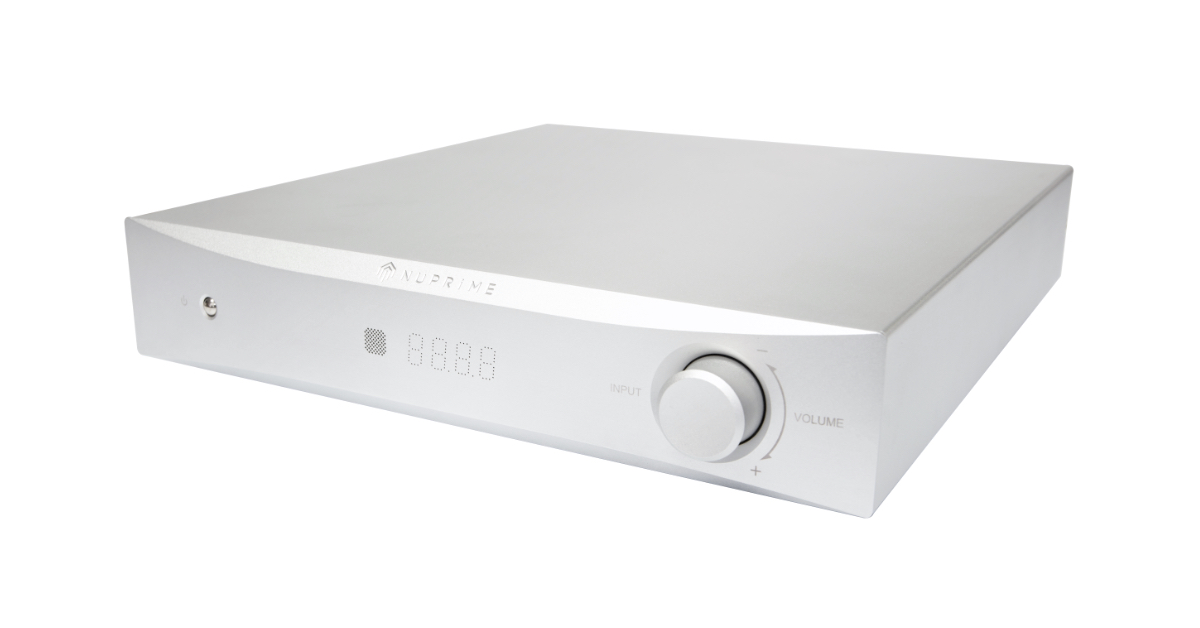

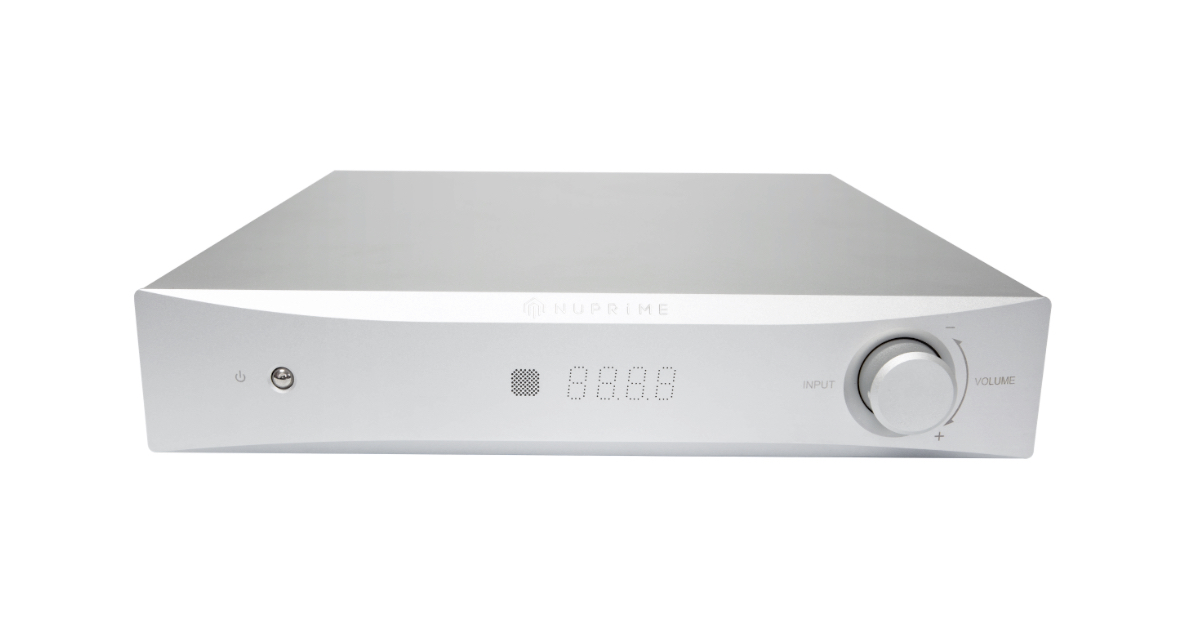

  • Available in black or silver anodized aluminum finish

Using Bluetooth and WiFi Audio Receivers and Dongles

NuPrime defined an USB Type-A port to carry S/PDIF data and 5V power for connecting to external wireless audio receiver using just one standard USB cable.The NuPrime Omnia WR-1, WR-2, BTR-HD, Stream Mini, and Stream Mini DAC wireless receivers have a micro USB port that is compatible this specification. This allow a standard off-the-shelf USB-A to micro USB cable to be used for power for the receiver as well as wireless audio data transfer in S/PDIF format.

Inputs:

  • USB : Type B 2.0 Hi-Speed, Windows OS : data stream up to 384KHz/24Bit and Native DSD 256.
    USB : Type B 2.0 Hi-Speed, Mac / Lunix OS : data stream up to 384KHz/24Bit and DOP DSD 128.
  • IIS/DSD : Supports PCM 44.1KHz ~ 384KHz/32Bit and DSD 64 ~ DSD 256 data streams.
  • OPTICAL : Supports PCM 44.1KHz ~ 192KHz/24Bit and DOP 64.
  • COAXIAL : Supports PCM 44.1KHz ~ 384KHz/24Bit and DOP 64 and 128.
  • EXTENSION : Supports PCM 44.1KHz ~ 192KHz/24Bit.

Outputs:

  • RCA unbalanced outputs : 2 Vrms
  • Frequency response: 20 Hz – 20 KHz / ±0.3 dB.
  • SNR: > 110 dB.
  • THD+N: < 0.005%.
  • Worldwide AC voltage: (90VAC~130VAC // 210VAC~ 250VAC) With Voltage Select Switch
  • AC Fuse: Slow-blow, 1A, 250VA
  • Product Dimension:  55 x 235 x 281 mm (H x W x D)
  • Package Dimension: 80 x 390 x 360 mm (H x W x D)
  • Product Weight: 2kg
  • Package Weight: 4.5kg
Warranty: 1 year.

DAC-8 Manual

[ultimate-faqs include_category=’dac’]
Error: View a112d59sa4 may not exist

USB Driver

Alita, VIH, DAC-8, DAC-9SE, Hi-mDAC, Omnia A300/A300SE, IDA-9
IDA-8 (black serial # >= 4002796, silver serial # >= 3002109, see below for other serial numbers)

NuPrime Audio_setup_WHQL_20250709

All others (Evolution DAC-2, Evolution DAC, DAC-10*, DAC-9X, DAC-9, IDA-16, IDA-8, AMG DAC, etc)

NuPrime_UsbAudio_v5.57.0_2023-03-20_setup.exe

This driver supports Signed Driver Enforcement and the following Operating systems:
Windows 11 (32-bit and 64-bit), Windows 10 (32-bit and 64-bit)

Note:
Windows XP, Windows 8, Windows 7 are no longer supported.
