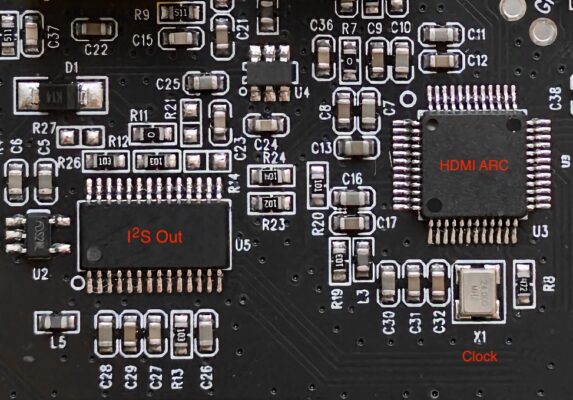

While typical ARC converters merely extract digital audio signals, the Arc Mini takes precision to a higher level by internally converting ARC to I²S with a master clock, ensuring low jitter and superior timing accuracy.
Compact and elegant, the Arc Mini delivers a pure, high-resolution digital output through both optical, coaxial and NuPrime Digital Port (S/PDIF) interfaces. Whether paired with a NuPrime DAC or other high-end audio components, it provides a clean and stable digital signal path optimized for high-fidelity performance.
Specification
- Input: HDMI ARC (Audio Return Channel)

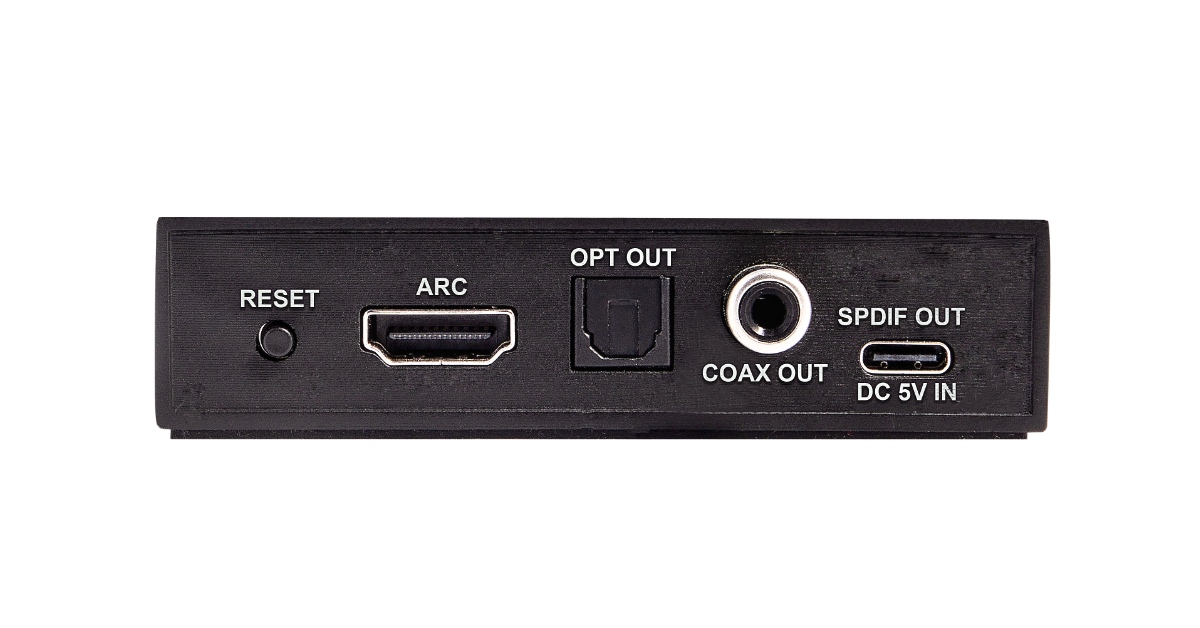

- Output: 1 × Coaxial (S/PDIF), 1 × Optical (Toslink), 1 x NuPrime Digital Port
- Supported Audio Formats: PCM stereo up to 24-bit/192 kHz
- Power Supply 5V DC (USB-C powered).
- Dimension: (W x H x D): 87 mm x 22 mm x 59 mm
- Weight: 0.08kg
- Color: Black
